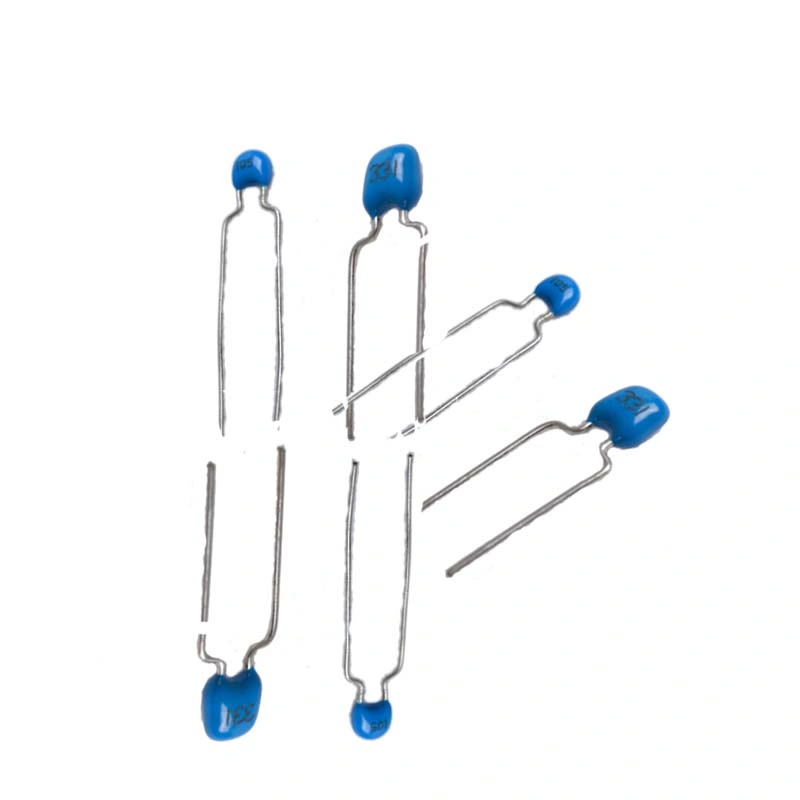

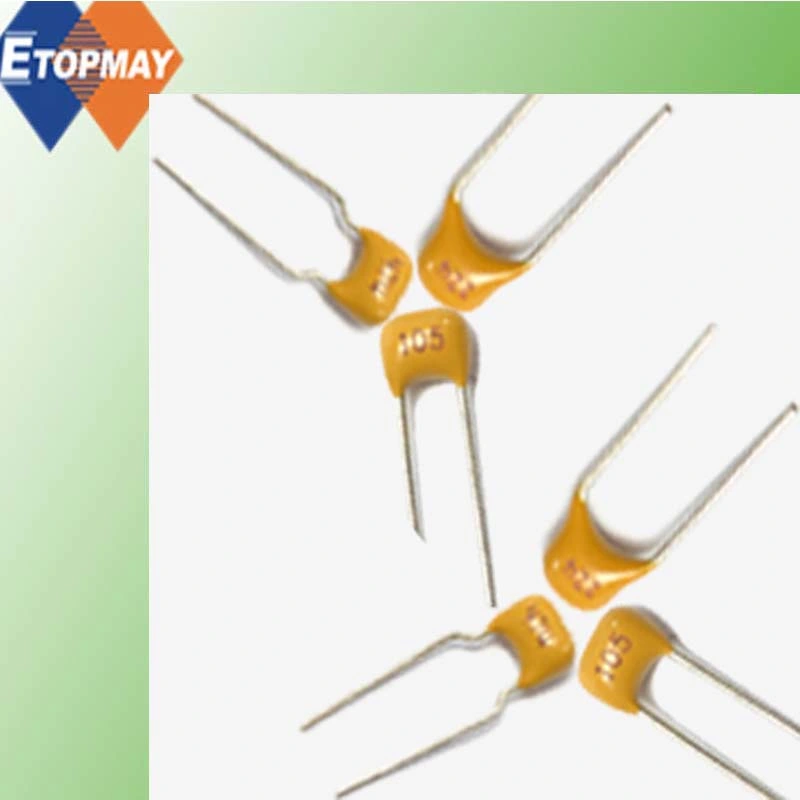

Key Specifications/Special Features:
Capacitance range: 0R 5 to 104
Insulation resistance: C ≤ 10nF R ≥ 10, 000MQC ≥ 10nF C R≥ 100S
Withstanding voltage: 2.5 times of working voltage
Dissipation factor: 0.15% maximum (20 degrees Celsius, 1MHz, 1V DC)
Rated voltage: 25, 50, 63 and 100V DC
Capacitance tolerance: B = 0.1PF, C = 0.25PF and D = 0.5PF
F = 1%, G = 2%, J = 5%, K = 10% and M = 20%
Life test: 200% rated voltage at +125 degrees Celsius 1, 000 hours
Dielectric Type | Class I | Class II | ||
Dielectric Material | Temperature Compensating | X7R/X5R(B) | Z5U(E) | Y5V(Y/F) |
Electrical Properties | The electrical properties is the most stable one and has little change with temperature, voltage and time. | X7R material has high dielectric constant, and its capacitance is higher than class I. These capacitors are classified as having a semi-stable T.C.. | Temperature characteristic is between that of X7R and Y5V. The capacitance is unstable and sensible to temperature and voltage. | Y5V material has highest dielectric constant. Its capacitance and dissipation is sensible to temperature and voltage. |
Application | Used in applications where low-losses and high-stability are required, such as filters, oscillators, and timing circuits so on. | Used over a wide temperature range , such in these kinds of circuits, DC-blocking, coupling, bypassing, frequency discriminating etc. | Ideally suited for bypassing and coupling application circuits operating with low DC bias in the environment approaching to room temperature. | Used over a moderate temperature range in application where high capacitance is required. |
Available capacitance range | 0.5pF~0.1uF | 100pF~22uF | 1nF~10uF | |
