High Frequency Disc Vacuum Capacitor CCG81-9 (6000PF, 12KV, 150kVA)

1. Product Name: Board Shape superpower Ceramic Capacitor CCG81-92. Model: CCG81-9The capacitor is used for high power wireless sending set,tank circuit,coupling,filter and feed circuit of middle and high frequency electronic equipment.We manufacture and export the following all models. CCG81 plate-shaped high pow

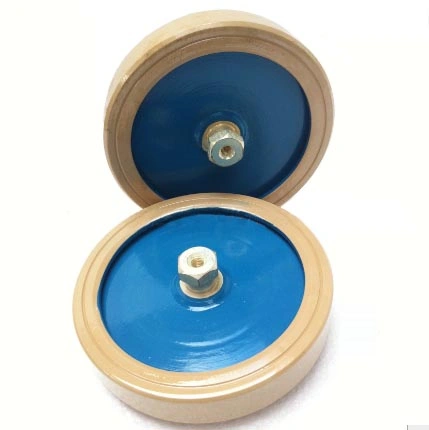

1. Product Name: Board Shape superpower Ceramic Capacitor CCG81-9

2. Model: CCG81-9

The capacitor is used for high power wireless sending set,tank circuit,coupling,filter and feed circuit of middle and high frequency electronic equipment.

We manufacture and export the following all models.

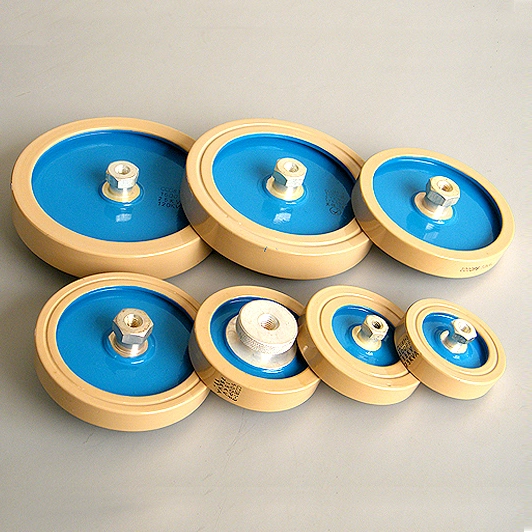

CCG81 plate-shaped high power ceramic capacitor
Model	Nominal power capacity	Rated voltage(KV)		Reactive power	Current Maximum	Dimension(mm)			Temperature coefficient
	(PF)	DC	HF(RMS)	(KVA)	(A)	D	H	Copper Nut	(PPM/ ºC )
CCG81-1	100	15	12	15	20	58	37	M6	-750
	150					60
	200						36
	250						35
	300	10	8				34
		12	10				35
		15	13			65
	350	10	8			60	34
		12	10			62
	500	10	8				33
	600					64
CCG81-2	500	12	10	15	25	70	34	M6
	750	10	8				33
CCG81-3	300	12	10	30(1.2.) 15(3.4.)	30	78	36	M6
		15	12				37
	350	12	10			80	36
		15	12				37
	500	10	8				34
		13	10				35
		15	12			82	36
	1000	8	5			82	33
		10	8			85
		13	10			88	34
CCG81-4	300	20	15	90(1.) 45(2.3.) 30(4.5.6.)	30	110	50	M8
		25	20				51
		30	25			113
	500	14	11			100	49
		15	12			110	47
		20	15				48
	600	14	11			100	48
	1000	10	8				45
		12	10			110
		15	12
	1500	10	8				44
	1600	11	8			102	43
CCG81-5	300	30	25	75	40	125	52	M8
	500	20	15			120	50
		25	20			125	51
	1000	15	12			120	46
	1500	10	8				44
		12	10				45
		15	12			122
CCG81-6	300	30	25	90	60	138	52	M8
	500	25	20			140
		30	25
	1000	15	12	100			48
		21	15				49
	1500	15	12				46
	1600	14	10
	2000	12					45
		13				142
	3000	12				145	44
CCG81-7	500	30	25	125	60	150	52	M8
	1000	25	20				50
	1500	21	15				47
	2000	15	12				46
	2200						45
	2500	10	8
		12	10			152
CCG81-8	1000	30	25	125	60	158	51	M8
	1500	25	20				48
	2000	21	15				47
	2500	12	10				45
CCG81-9	1000	30	25	150	60	200	55	M10
	1500
	1600
	2000	15	12				45
		20	15
	2500	15	12
		20	15
	3000	15	12
	4000	13	10
	5000
	6000	12	10			205

High power ceramic capacitor technical parameters:

1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
