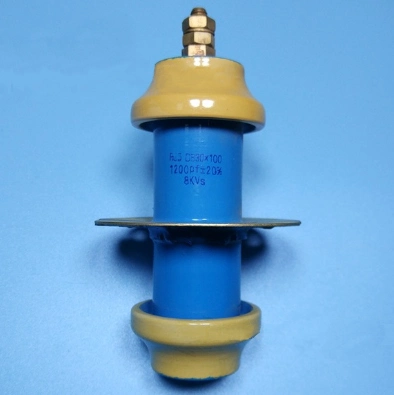

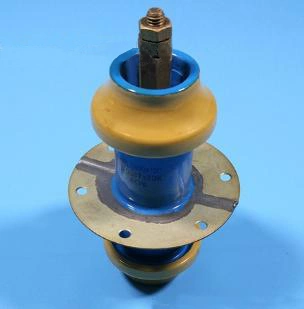

1. Product Name: FT string heart high power ceramic capacitor
2. Model: FT45155
The capacitor is used for tank circuit,coupling,by-pass and feed circuit.
We manufacture and export the following all models.
High power ceramic capacitor technical parameters
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
