GTCAP Small Modules Ultra-Low ESR Super Capacitor 7.5V 0.75f
Support special design
Feature:
- Operate temperature: -40ºC~+70ºC
- Very low leakage current and ESR.
- Cycle life: 500,000 times
- Voltage: 5.5V,7.5V
- Suit for low current and long time output.
- Voltage and capacitance can be make according to customer requirements.
Part NO. | Voltage | Capacitance | ESR | Size | Lead Space |
(V/DC) | (F) | Max(Ω) | WxLxH (mm) | P (mm) | |
GTSM-5R5-104UR | 5.5 | 0.1 | 1.4 | 7x13x14 | 8 |
GTSM-5R5-224UR | 5.5 | 0.22 | 1.2 | 7x13x14 | 8 |
GTSM-5R5-334VR | 5.5 | 0.33 | 1.2 | 9x17x16 | 8 |
GTSM-5R5-474VR | 5.5 | 0.47 | 1.2 | 9x17x16 | 8 |
GTSM-5R5-105VR | 5.5 | 1 | 0.5 | 10x21x22 | 12 |

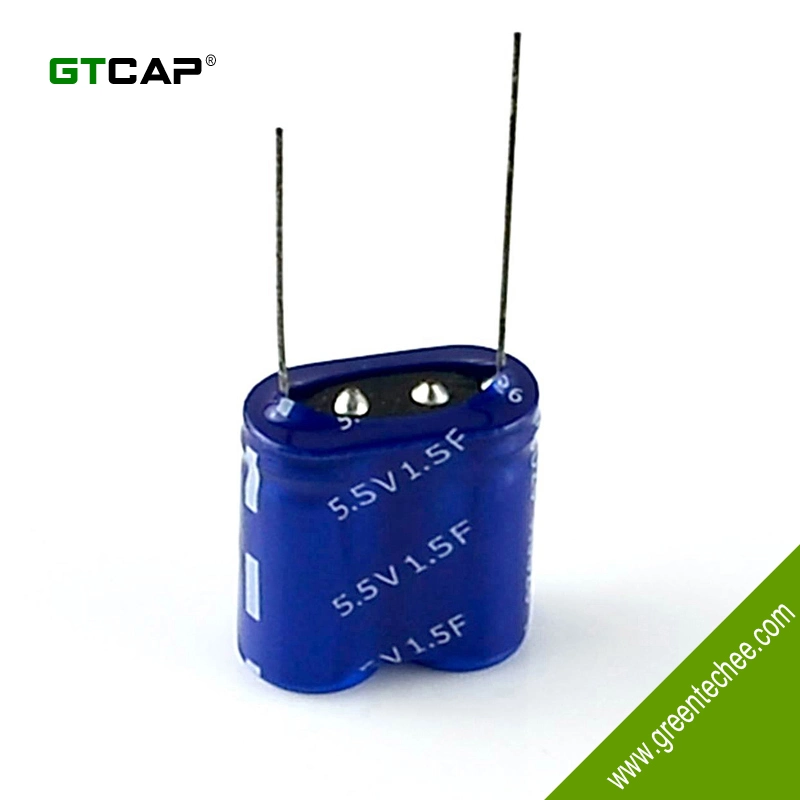

GTSM-5R5-155VR | 5.5 | 1.5 | 0.5 | 10x21x22 | 12 |
GTSM-5R5-205VR | 5.5 | 2 | 0.22 | 13x26x23 | 12 |

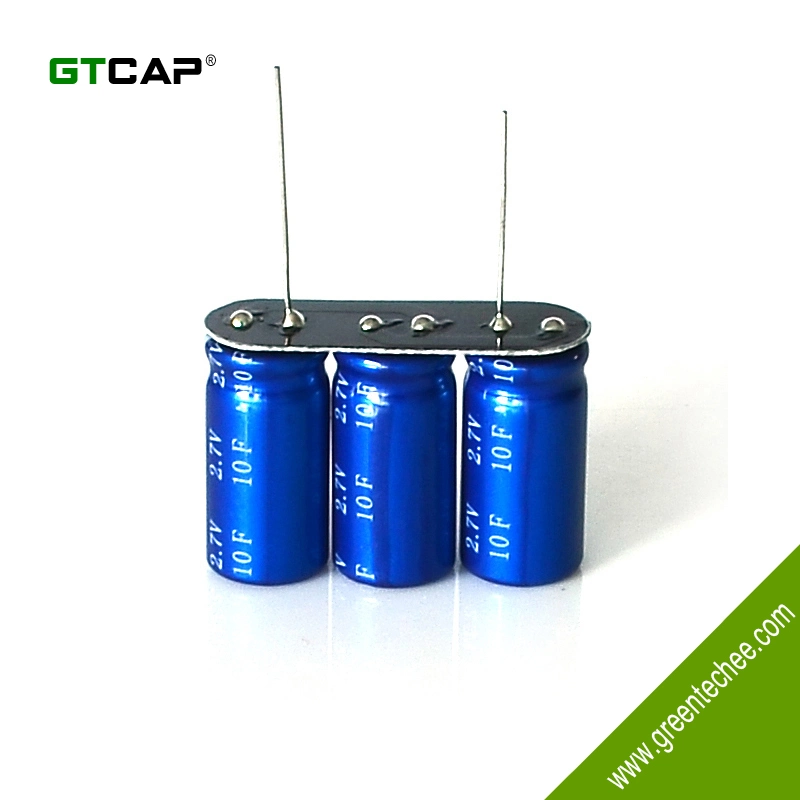

| GTSM-7R5-334VR | 7.5 | 0.33 | 1.8 | 9x25x16 | 13 |
| GTSM-7R5-334VR | 7.5 | 3.3 | 0.27 | 10.5x32.x21 | 15 |
Application:
- CMOS, VCR, RAM, Radio,TV set,DVD,Electric toy.
- LED-lighting device,Telephone, intelligent door lock.
- electric cooker,cell phone,electric water heater.
- self-powered super flashlight,intelligent instrument etc.
